5-532956-2
Manufacturer:
TE Connectivity
Mfr.Part #:
5-532956-2
Datasheet:
Description:

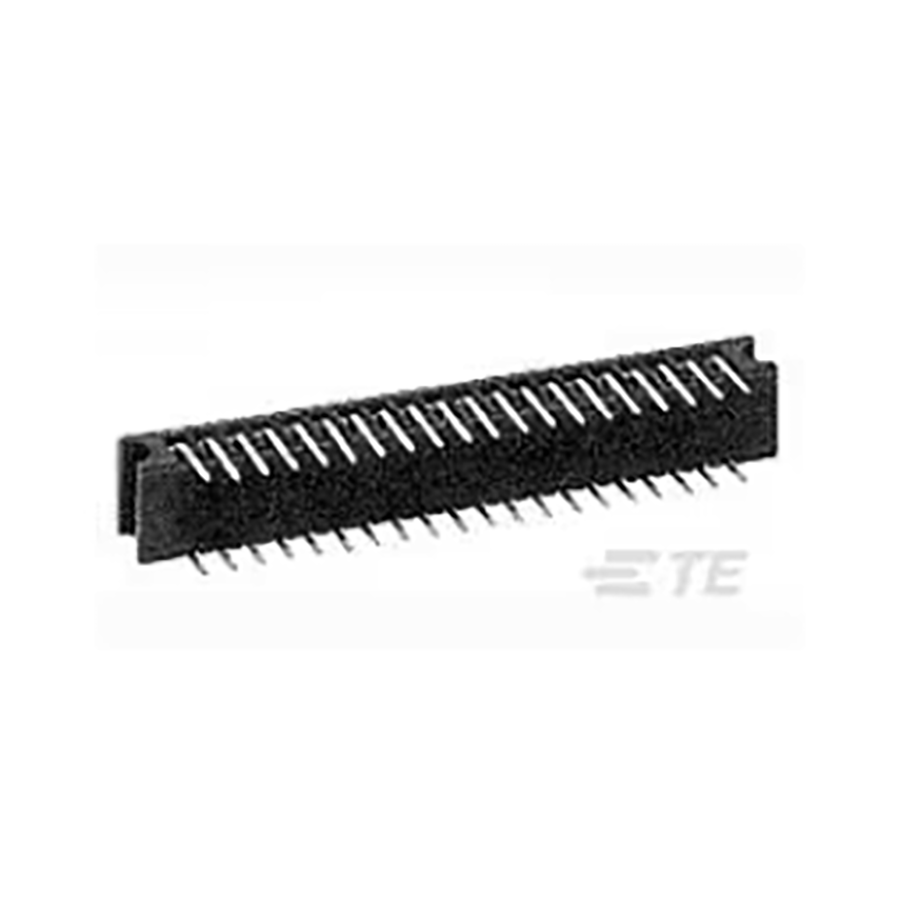

Headers and Wire Housings Through Hole Connector, Receptacle, Socket Number of Positions:16 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 26.87 mm |
| Width | 8.13 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Voltage Rating (AC) | 250 V |
| Height | 8.13 mm |
| Packaging | Tube |
| Depth | 8.13 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Tin, Gold |
| Lead Length | 2.92 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 16 |
| ELV | Compliant |
| Connector Type | Connector, Receptacle, Socket |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Style | Socket |
| Contact Resistance | 12 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Plating | Gold |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.57 mm |
| Tail Length | 2.921 mm |
| Contact Gender | Female |
| Contact Shape | Square |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Contact Finish Thickness - Mating | 762 nm |
| High Temperature Compatible | Yes |
| Mating Alignment | With |
| PCB Mount Retention | Without |
| PCB Mount Alignment | Without |
